i2s straight to Dclass

Products

Introducing

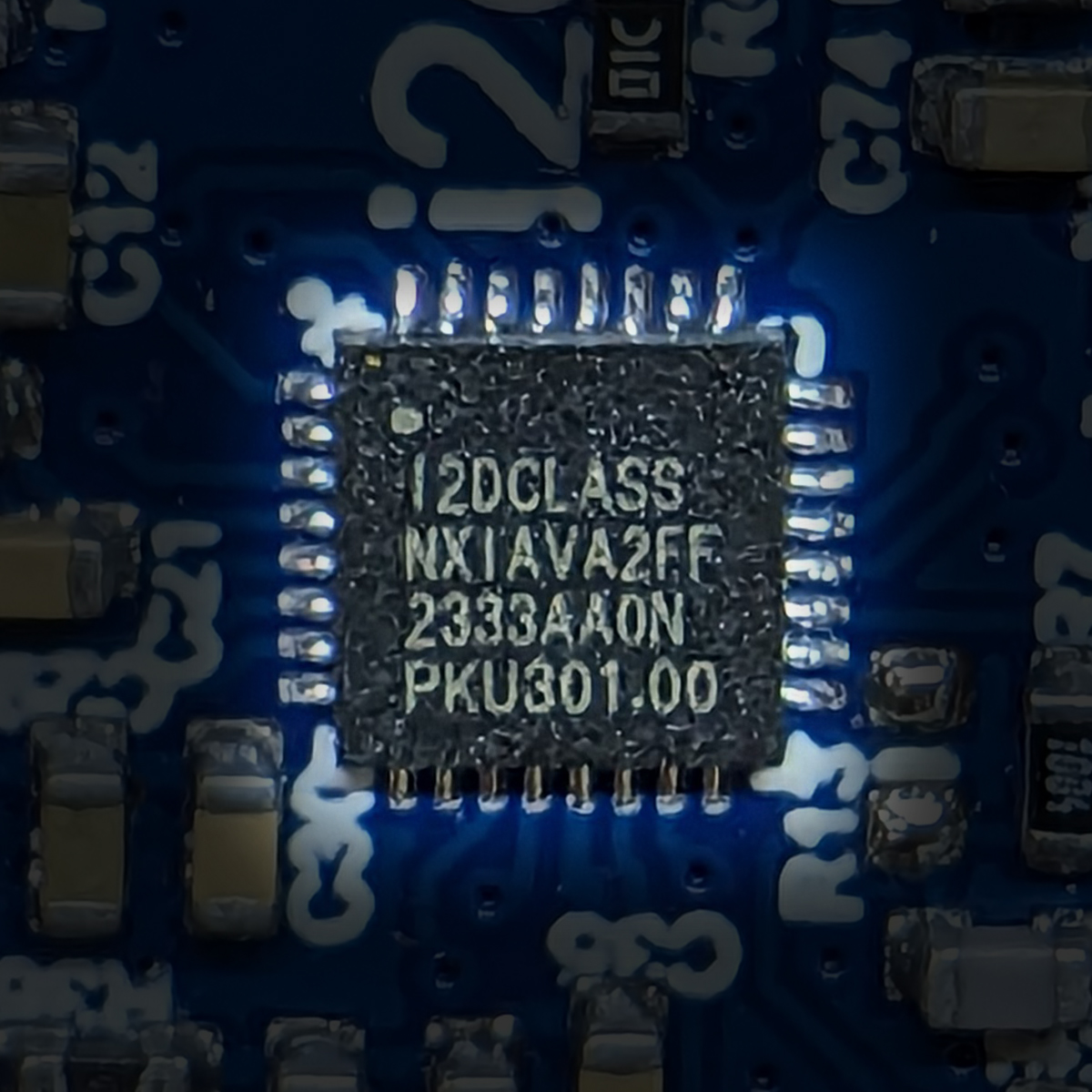

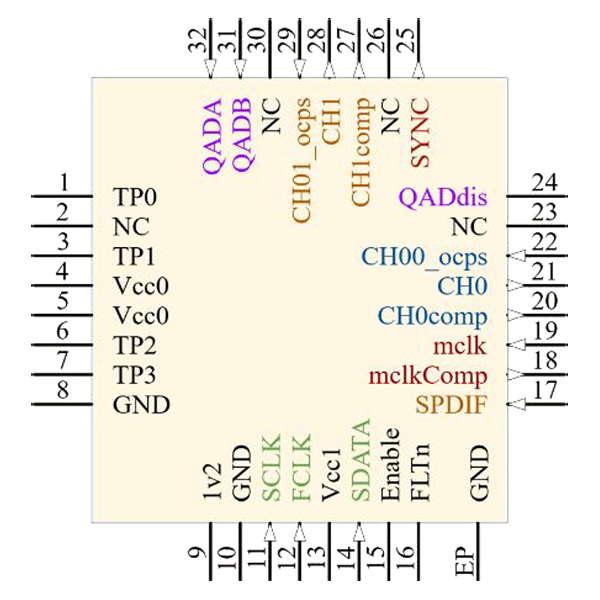

NXIAVA2

Description

The first IC to contain the i2Dclass technology- samples and volume quantities available now.

Features:

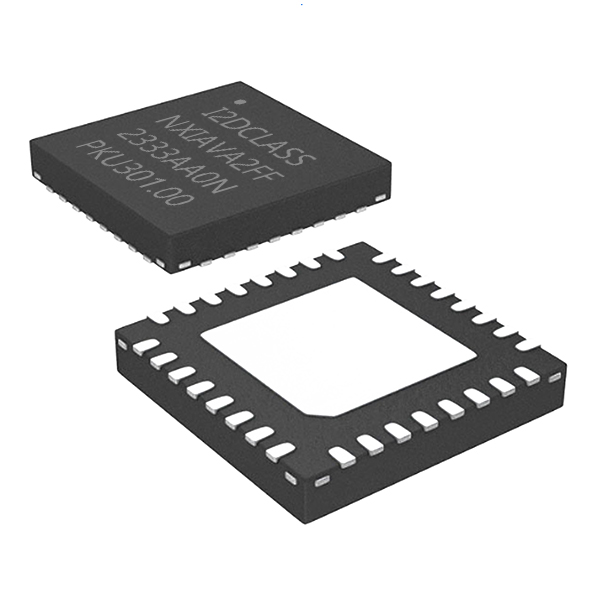

  • QFN32 (0.4mm pitch) 48MHz 3v3 IO compatible
  • I2S 2 channels up to 192KHz, 32bit
  • SPDIF/AES3 up to 96kSps
  • Auto switching from SPDIF to I2S (SPDIF when no I2S detected)
  • Rotary encoder volume control, can default to either -30dB or full volume at power up
  • 2 channels- 24bit 24mA complementary output capable of driving either analogue or digital output stages directly.
  • OCP built in option- works with any bridge.
  • 2us DAC group delay, 25us total (including 96ksps serial input and 50kHz 2 pole LPF).
  • >113dB SNR, <0.004% THD (linear filter), <0.005% THD (D-class output, 8ohm, 54V).
  • Output carrier <520kHz (below AM band)
  • <20mW power consumption.
  • Full differential frequency spreading for reduced EMI.

REFERENCE DESIGNS

All reference designs are based on the NXIAVA2 and available for purchase.

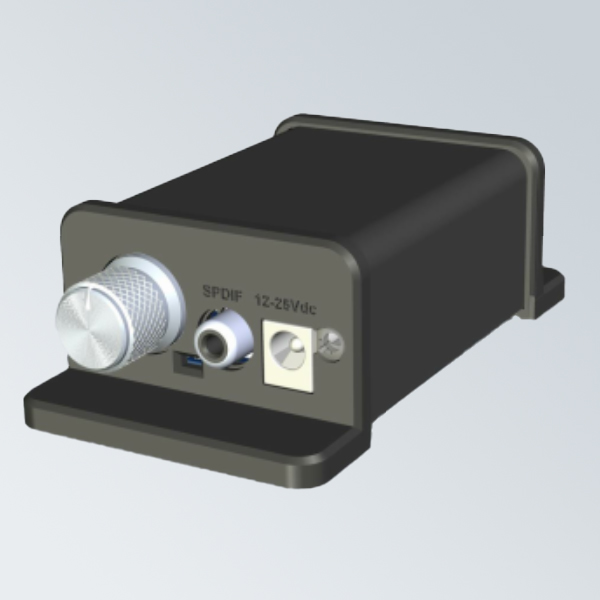

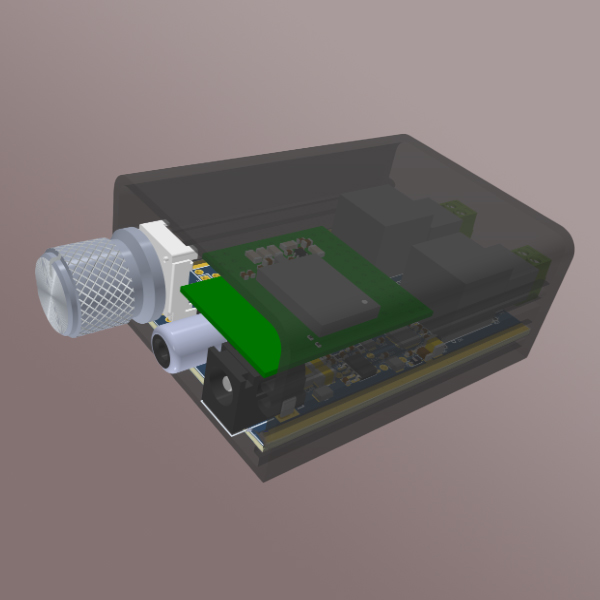

Mark 1

IN STOCK

Description

A minimalist devkit that can drive 2x80Wrms into 4Ω at 25V without a heatsink.

Features:

  • SPDIF/AES3 RCA input
  • I2S internal header (BCLK, FCLK, SDATA, GND)
  • Volume control- half bit steps via rotary encoder
  • Dual MP8049S output stages run in parallel mode for 11A peak.
  • 2 x 90Wrms @ 19V 2Ω <1% THD
  • 2 x 105Wrms @ 25V 3Ω <1% THD
  • 2 x 80Wrms @ 25V 4Ω <1% THD
  • 2 x 40Wrms @ 25V 8Ω <1% THD
  • SNR >110dB
  • Channel separation >115dB

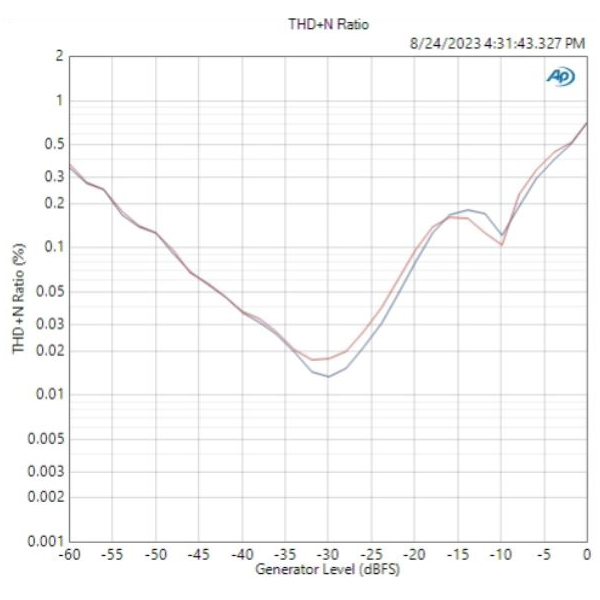

  • THD+N @8Ω, 25V <0.02%
  • No heatsink

Pack includes:

  • PCBA
  • mechanicals housing (black anodized extruded aluminium housing, 2 end pieces)
  • Power Barrel connector plug (PP3-002B or equivalent)

Optional extras (see accessories)

  • 24V 8A 110-240VAC PSU
  • Aptx HD Bluetooth to I2S daughter board

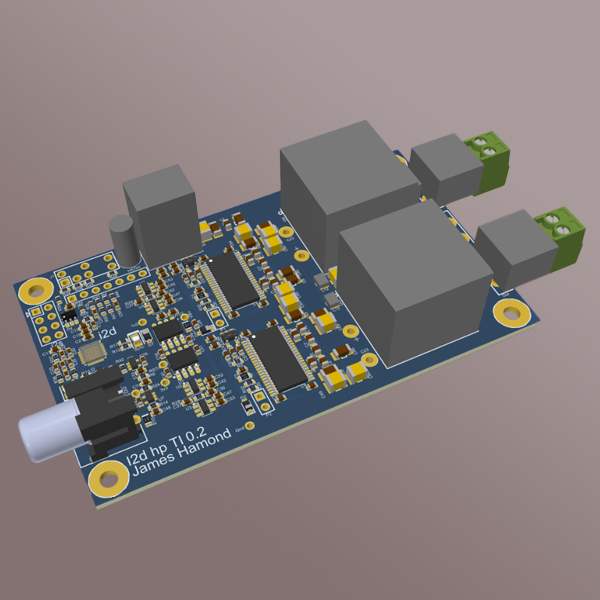

Mark 2

2-WEEK LEAD TIME

Description

High power system able to drive up to 12Amps into 2 channels.

Features:

  • SPDIF/AES3 RCA input
  • I2S internal header (BCLK, FCLK, SDATA, GND)
  • Volume control- half bit steps via rotary encoder inputs (dial not included)
  • Dual DRV8412D output stages run in parallel mode for 12A peak.

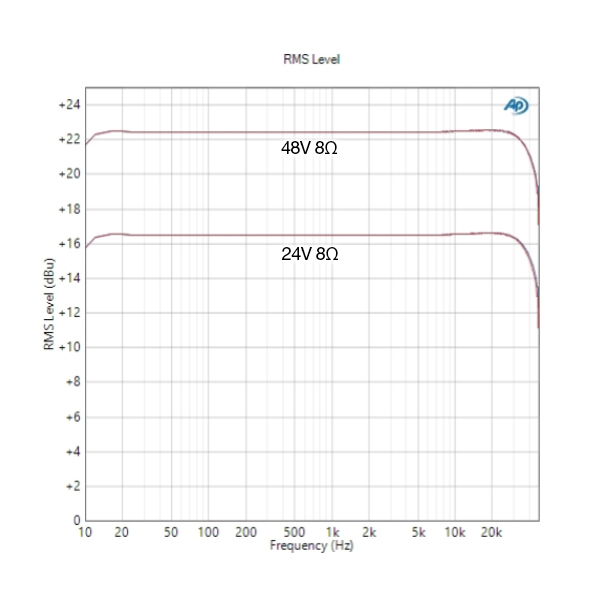

  • 2 x 150Wrms @ 24V 2Ω <1% THD
  • 2 x 220Wrms @ 36V 3Ω <1% THD
  • 2 x 300Wrms @ 48V 4Ω <1% THD
  • 2 x 190Wrms @ 54V 8Ω  <1% THD
  • SNR >112dB
  • Channel separation >116dB

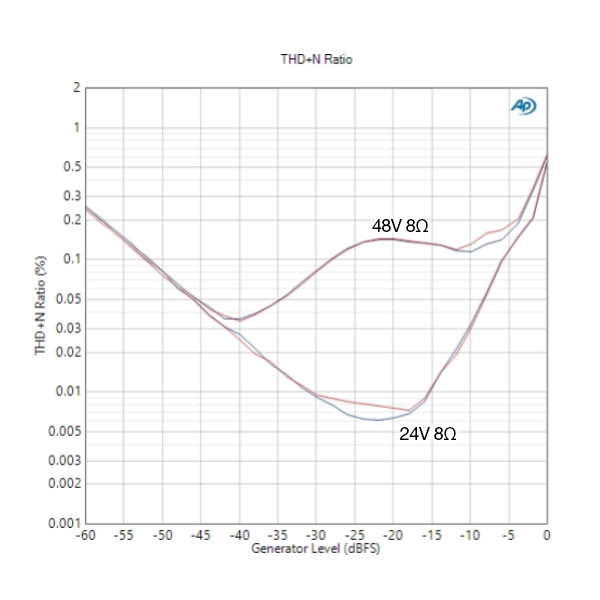

  • THD+N @8Ω, 24V <0.008%
  • THD+N @8Ω, 48V <0.04%

Pack includes:

  • PCBA
  • Extruded aluminium cooling plate

Optional extras (see accessories)

  • 48V 6A 110-240VAC PSU
  • Aptx HD Bluetooth to I2S daughter board

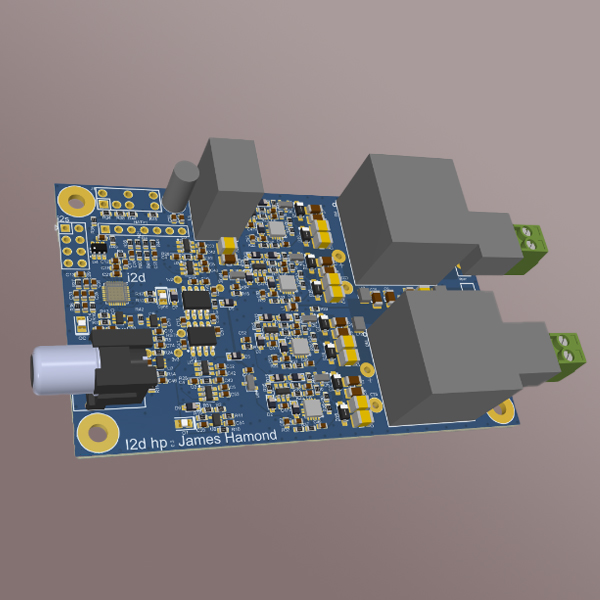

Mark 3

3-WEEK LEAD TIME

Description

Ultra power GaN based performance module using the NXIAVA2 internal OCP logic, all silicon is rated to 90V continuous operation (500Wrms into 8Ω potential).

Features:

  • SPDIF/AES3 RCA input
  • I2S internal header (BCLK, FCLK, SDATA, GND)
  • Volume control- half bit steps via rotary encoder inputs (dial not included)
  • Discrete 90V 6mΩ EPC2204 GaN FETs
  • OCP limit set at >24A.
  • 2 x 380Wrms @ 54V 4Ω <1% THD

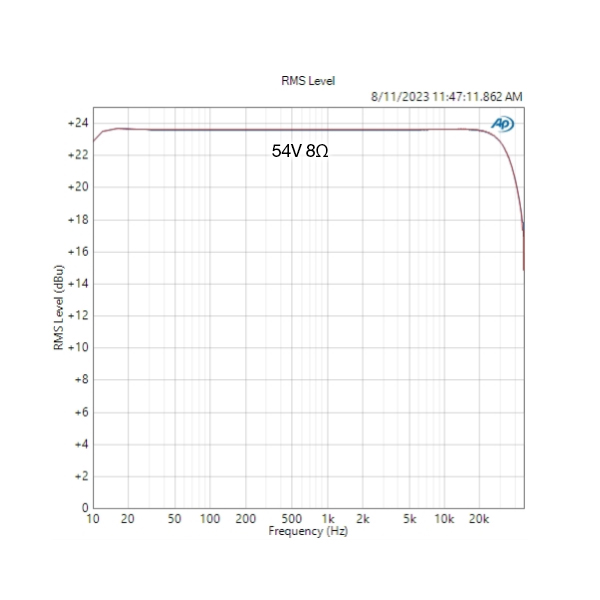

  • 2 x 190Wrms @ 54V 8Ω <1% THD
  • SNR >113dB
  • Channel separation >113dB
  • THD+N @8Ω, 54V <0.005%

Pack includes:

  • PCBA
  • Extruded aluminium cooling plate

Optional extras (see accessories)

  • 48V 6A 110-240VAC PSU
  • Aptx HD Bluetooth to I2S daughter board

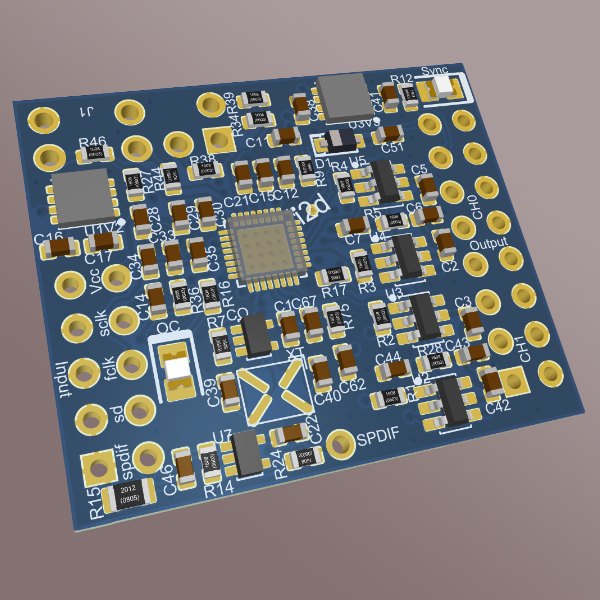

Module

2-WEEK LEAD TIME

Description

A module allowing easy integration of the NXIAVA2 including all voltage rails, buffers, and clocks. Drop in output stages (active filters, class etc) reference designs to follow.

Features:

  • SPDIF/AES3 input
  • I2S internal header (BCLK, FCLK, SDATA, GND)
  • 2 externally buffered differential pair channel outputs
  • OCP logic capable
  • SNR > TBD
  • Channel separation TBD
  • THD+N TBD

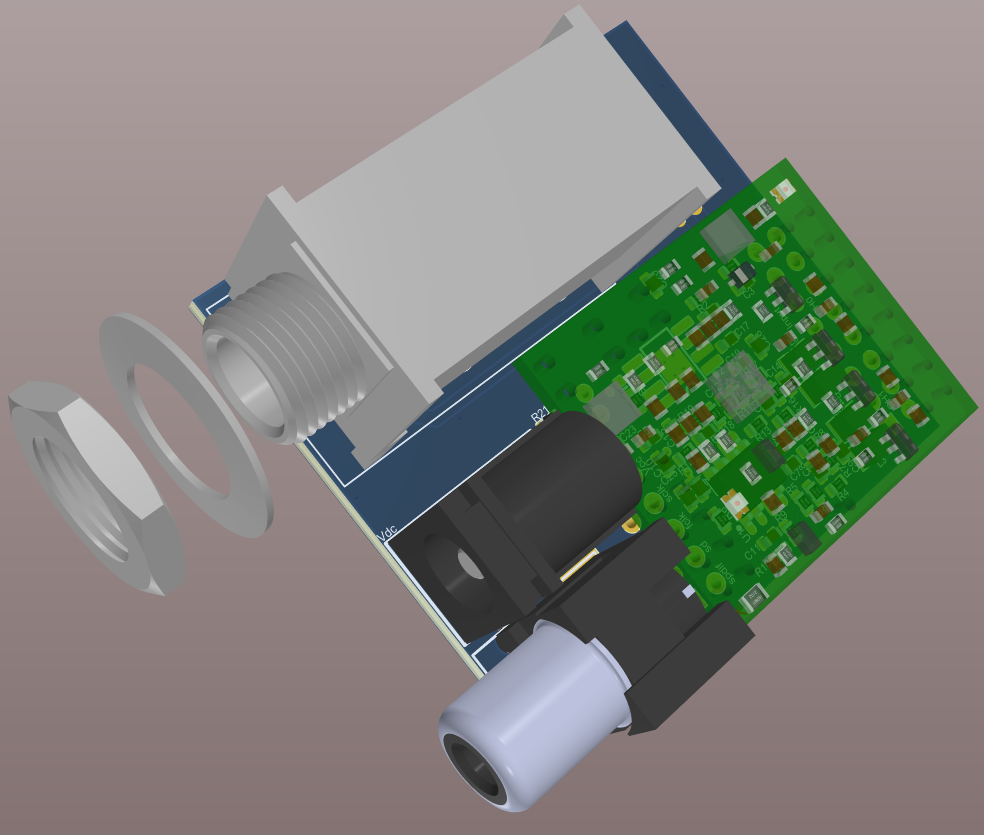

DAC Headphone Cradle

2-WEEK LEAD TIME

Description

A stereo DAC module adaptor 3 pin single ended 2 pole active filter based on the OPA1656 op-amp.

Features:

  • ~113dB SNR
  • ~0.007 THD+N
  • >90dB channel seperation (3 pin common
  • 120mW @ THD+N = 1%, 32 ohm
  • 7-12VDC



ACCESSORIES & EXTRAS

24V 8A continuous universal PSU

Accessory for the Mark 1

48V 6A continuous universal PSU

Accessory for the Mark 2 and Mark 3

Analog to i2S daughter board

Coming soon

Bluetooth Hat Board

3-WEEK LEAD TIME

Description

Bluetooth hat board based on QCC3034 with AptX HD, compatible with all reference design i2S inputs.

Features:
